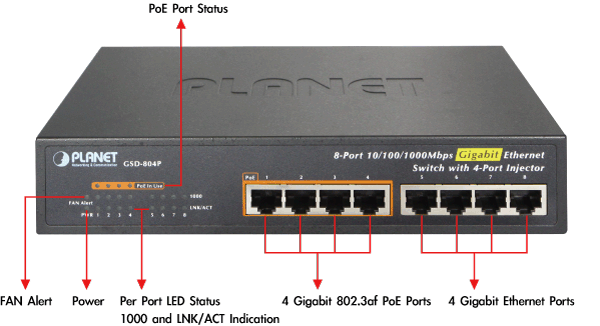

Switch 8-Port 10/100/1000Mbps with 4-Port PoE Gigabit Ethernet GSD-804P

GSD-804P 0 Producto Estrella
$186.93 IVA incluido

$157.08 sin IVA
? IVA INCLUIDO Chile.

Switch 8-Port 10/100/1000Mbps with 4-Port PoE Gigabit Ethernet GSD-804P .



Planet Switch 8-Port 10/100/1000Mbps with 4-Port PoE Gigabit Ethernet GSD-804P



Datasheet

Date Version Description Download
2014-02-27 1.0 GSD-804P

Hardware Specifications
Network Connector 8-Port RJ-45 for 10/100/1000Base-T
PoE Inject Port 4-Port with 802.3af PoE injector function, Port-1 to Port-4
LED Display 1 Power , 1 Fan Alert
1-4 port PoE in-use
1-8 port Speed, LNK/ACT
Switch Architecture Store and Forward switch architecture
MAC Address 8K MAC address table with auto learning function
Switch Fabric 16Gbps
Switch Throughput 11.9Mpps
Jumbo Packet Size 9K Bytes
Power Requirements AC 100~240V, 50/60Hz, 1.5A
Power Consumption Max. 65 watts / 221 BTU
Dimensions (W x D x H) 217 x 135 x 43 mm
Weight 890g
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type End-Span
PoE Power Output Per Port 48V DC, 350mA . Max. 15.4 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 55 watts
Standard Conformance
EMI Safety FCC Class A, CE
Operating Temperature 0 ~ 50 degrees C
Storage Temperature -40 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing
Standard Compliance IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3ab: Gigabit Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
